Temperature Control Units
Product Introduction
The equipment supports customization

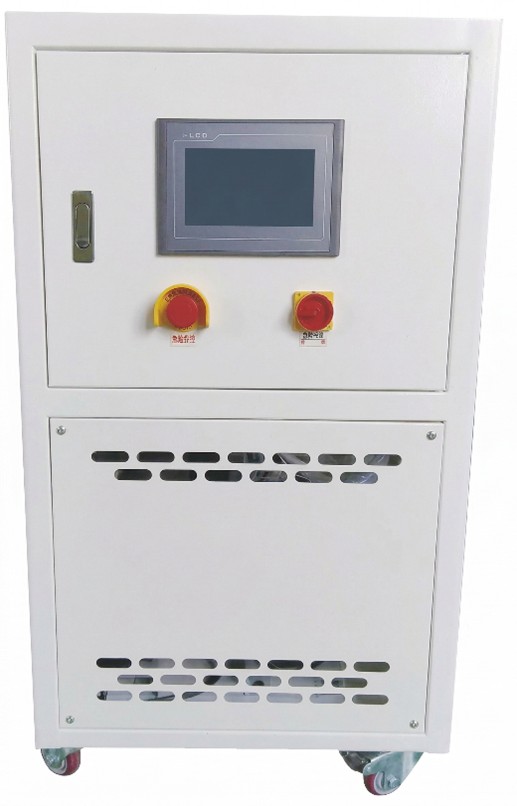

Name | Heating Circulator | |||||||||
Product Model | HS-H-5W | HS-H-10W | HS-H-15W | HS-H-25W | HS-H-38W | HS-H-60W | HS-H-90W | HS-H-120W | HS-H-240W | |
Heating/Cooling Method | electric heating | |||||||||
Typical Industry Applications | This product is mainly used in aerospace environmental testing, heat sink testing, low-temperature reaction vessels in the pharmaceutical and chemical industries, special gas purification, and low-temperature distillation, rectification, extraction equipment in the chemical and pharmaceutical industries. | |||||||||
Typical Supporting Heat Exchangers | Heat exchangers with flow channels such as reaction vessels (glass, stainless steel, enamel), small microchannels, rotary evaporators, mold environment simulation, pulverizers, laser mirror temperature simulation (CO2, pulse, semiconductor), etc. | |||||||||
Control System | Feedforward PID | |||||||||
Medium Temperature Range | 50°C ~ -300°C | |||||||||
Communication Protocol | MUSBUS RTU Protocol, RS485 Interface or Ethernet | |||||||||
Temperature Control Options | Outlet Temperature Control, Vessel Internal Control, Optional: Material Control | |||||||||
Pressure Protection, Flow Monitoring | By adding internal or external bypass pressure relief (Optional: Flow Control, Pressure Control) | |||||||||
Temperature Control Accuracy | Medium ±0.5°C (Accuracy can be higher if specified in advance), Optional: Material Temperature Accuracy ±1°C | |||||||||
Heating Power | 5.5KW | 10KW | 15KW | 25KW | 38KW | 60KW | 90KW | 120KW | 240KW | |
Refrigeration | At 200℃ | 5.5KW | 10KW | 15KW | 25KW | 38KW | 60KW | 90KW | 120KW | 240KW |
At 100℃ | 5.5KW | 10KW | 15KW | 25KW | 38KW | 60KW | 90KW | 120KW | 240KW | |
Safety Protection | With self-diagnostic function; refrigerator overload protection; high-pressure switch, overload relay, thermal protection device and other safety guarantees. (Optional: Three-color light with buzzer, high/low liquid level protection) | |||||||||
Refrigeration Accessories | Compressor: International famous brands such as Emerson Copeland, Tecumseh France, etc. | |||||||||
Operation Interface | 7-inch color touch screen display/input, optional temperature curve recording or data output | |||||||||
Sensor | Thermal medium temperature feedback PT100 (outlet temp., inlet temp.), material-controlled equipment includes material-end sensor | |||||||||
Dimensions | 40*60*105 | 60*60*125 | 60*60*125 | 70*80*135 | 150*100*165 | 150*100*170 | 200*125*200 | 200*145*200 | 240*150*210 | |
Power Supply (380V 50Hz) | 6.5KW MAX | 11KW MAX | 16KW MAX | 26.5KW MAX | 40KW MAX | 63KW MAX | 92KW MAX | 123KW MAX | 248KW MAX | |
Nitrogen-charged Welding Process | Low-temperature connection pipes use high-quality soft copper tubes, with tube fabrication using high-precision electric pipe benders, nitrogen-charged welding, and a 48-hour high-pressure leakage prevention process to ensure welding quality; system pressure maintenance at 2.0MPa | |||||||||
Pump Flow Rate(m3/h) | 2 | 3 | 3 | 6.6 | 6.6 | 15 | 15 | 24 | 25 | |
Casing Material | Cold Rolled Sheet, Plastic Sprayed | |||||||||
Interface Size | DN-20 | DN-20 | DN-25 | DN-25 | DN-25 | DN-25 | DN-40 | DN-50 | DN-50 | |
Optional Connection Piping | Metal insulation tube, silicone tube, fluorine rubber tube stainless steel hard connection with reserved flange | |||||||||
