Lifting and Filtration Glass Reactor

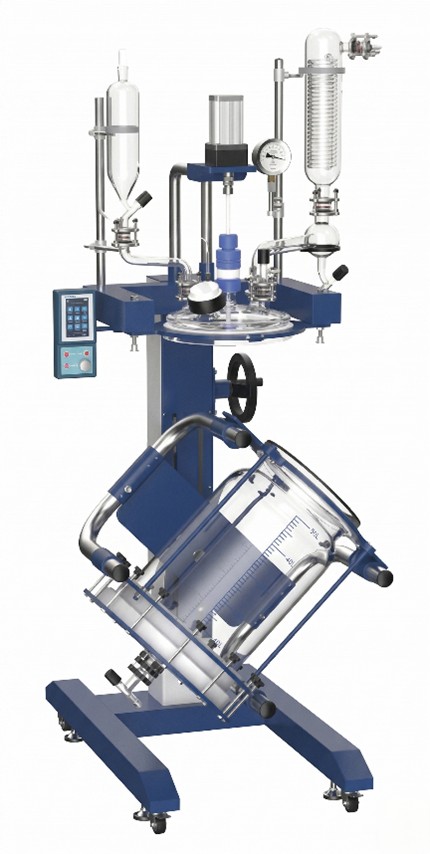

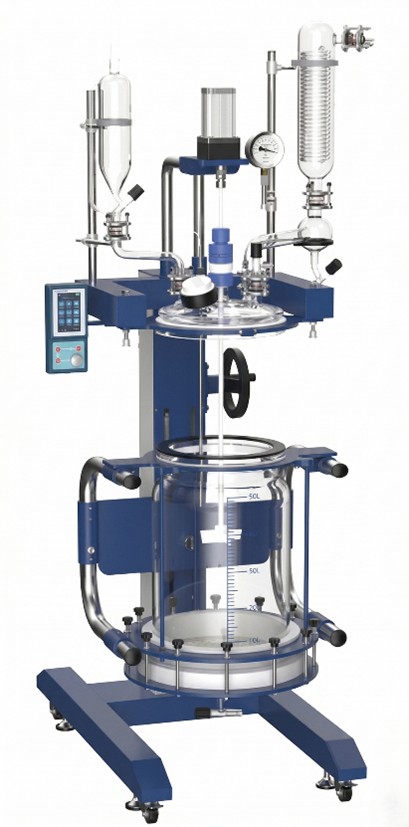

The lifting-type filtration glass reactor integrates reaction, filtration, and material discharge into one system, providing a highly efficient and versatile solution for laboratory and pilot-scale applications. This reactor features a built-in PTFE (Polytetrafluoroethylene) filter plate and a lifting mechanism, enabling seamless solid-liquid separation without the need for external filtration equipment. The reactor body can be lifted, facilitating easy cleaning, sample collection, and flexible operation. It is an ideal choice for processes such as crystallization, synthesis, filtration, and solvent recovery, and is widely used in the chemical, pharmaceutical, and materials research industries.

Product Introduction

Model		GRL-20CEf	GRL-30CEf	GRL-50CEf
Vessel Capacity (L)		20	30	50
Jacket Capacity (L)		9	10	16
Circulating Fluid Inlet/Outlet		Rc 3/4"
Condenser Heat Transfer Area (m²)		~ 0.245		~ 0.42
Constant Pressure Funnel (ml)		1000	2000
Glass Part Material		3.3 High Borosilicate Glass
Kettle Lid Openings	Stirring Port	50# Flange Port
	Sensor Port	24# Ball Joint
	Condenser Connection Port	50# Flange Port
	Vacuum Gauge Installation Port	35# Flange Port
	Constant Pressure Funnel Connection Port	35# Flange Port
	Solid Addition Port	80# Flange Port
iltering Part	Material	Polyester/Polypropylene
	Filter Rating (µm)	1~250
Filter Plate Material		PTFE
Working Temperature Range		-80~200 (Note: please pay attention to filter cloth allowable maximum temperature)
Thermal Shock Resistance (°C)		ΔT<=80°C
Operating Pressure		Atmospheric Pressure
Jacket Maximum Pressure (MPa)		<=0.03
Stirring Motor Power (W)		370
Maximum Torque (N·m)		5.4
Rotational Speed (rpm)		20~500
Rotational Speed Display Accuracy (rpm)		±1
Display Screen		LED
Power Supply (V/Hz)		100-240~, 50/60
Fuses		TSD 6.3AL (Applicable for 100-120V~)
		TSD 5A L (Applicable for 220-240V~)
Temperature Display Accuracy (°C)		0.1
Sealing Material		PTFE
Kettle Lift Stroke (mm)		400	350
Ambient Temperature (°C)		5~35
Ambient Relative Humidity		<= 70%
Dimensions (WDH) mm		1100x760x2050
